Car repair bench / Vertifical lifting repair bench TG-700-B

Specifications:

Bench length:------------------------------5600mm / 6000mm
Bench width:--------------------------------2200mm
Working height:----------------------------300--1050mm
Post Max.pulling tension:-----------------95KN (10tons)
Pneumatic pressure range:----------------0.8MPa
Post working range:-----------------------360°
Max.Lifting weight:-----------------------3500kg
Total weight:-------------------------------3000kg

Features:

1. Hydraulic vertical lifting platform makes the operation easier.

2. The platform material is flat plate ,high intensity, no work blind spot,quick stretching.

3. The hydraulic pulling tower can flexible work at an angle from 0° to 360° on the ring platform .

4. Streamline clamps can fasten almost all various damaged vehicles.

5.Low press cylinder with big cylinder diameter. Resistance to wear with low failure rate.

6. The auto body data is from Mitchell company, which always keep data updating.

7. A complete set of clamps and tools considered almost any type of reshaping, which is convenient and flexible

8. Perfect after sales service guarantees customers’ satisfaction.

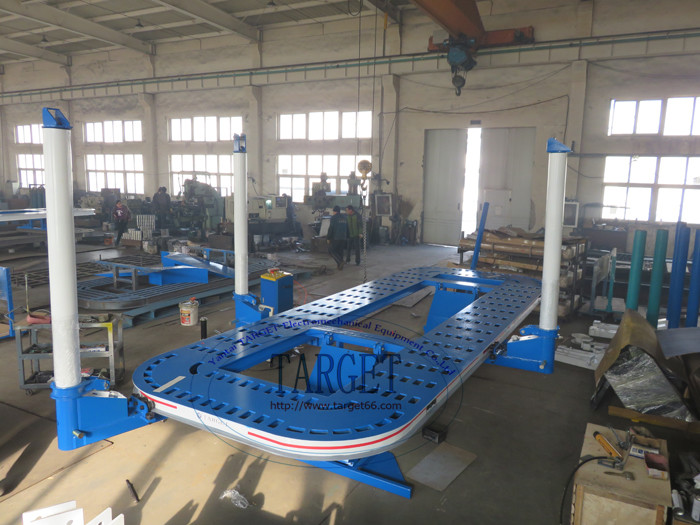

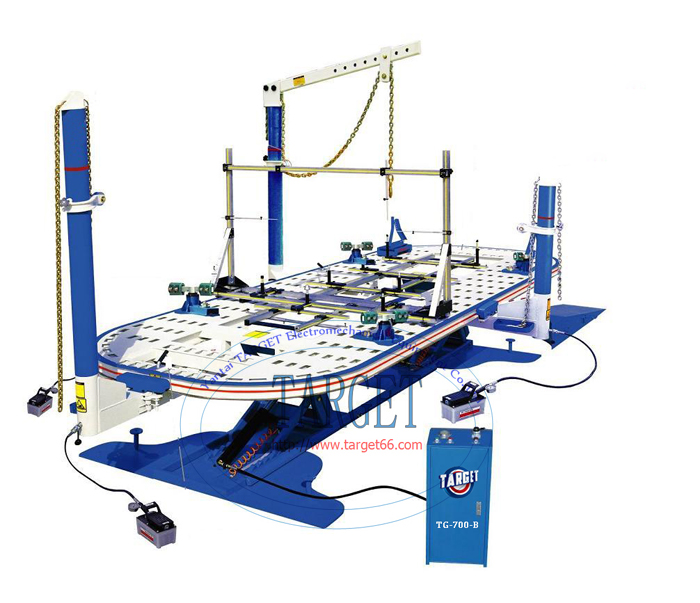

Car repair bench / Vertifical lifting repair bench TG-700-B Images
